Hardware Reference

This is a hardware reference for users who want to understand or work directly with the device at the electrical level. It includes schematics, pinouts, and power details for firmware development, diagnostics, and advanced integrations. Most users can safely skip this page.

Schematic

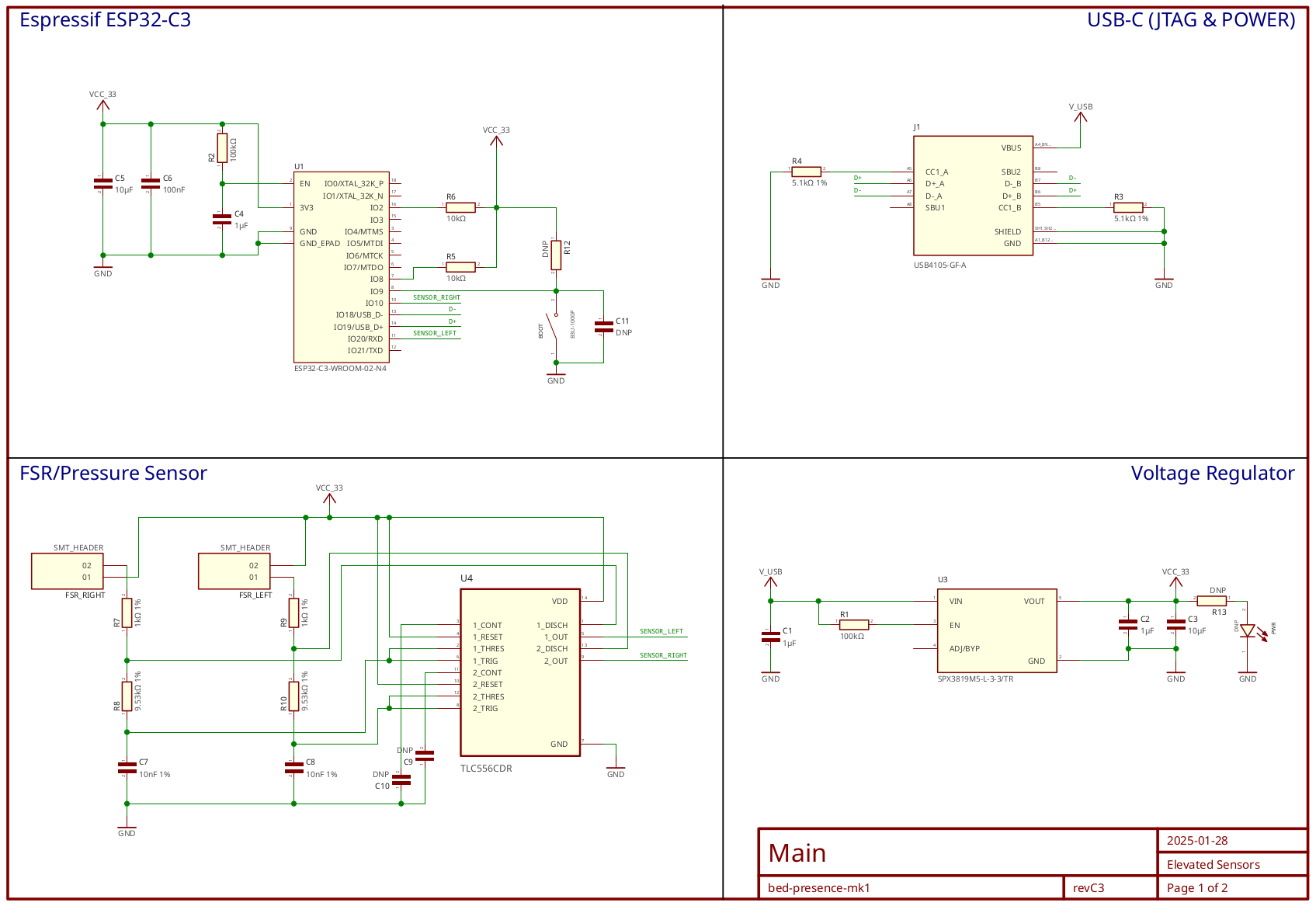

Download Bed Presence Mk1 schematic (PDF)

Pinout

Bed Presence Mk1 does not expose any user accesible pins.

Compliance Notes

This product is not certified as a complete device under FCC, CE, or other regulatory frameworks.

It contains an ESP32-C3 module that is FCC certified under FCC ID: 2AC7Z-ESPC3WROOM.

Use of this product, especially in modified or commercial deployments, may require additional compliance evaluation depending on jurisdiction and application.
